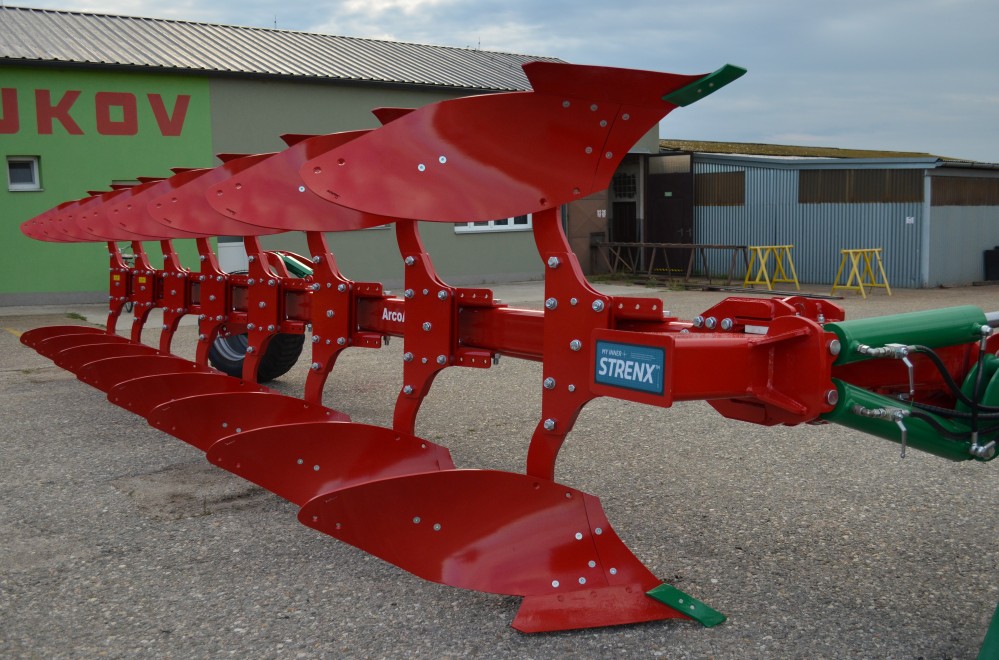

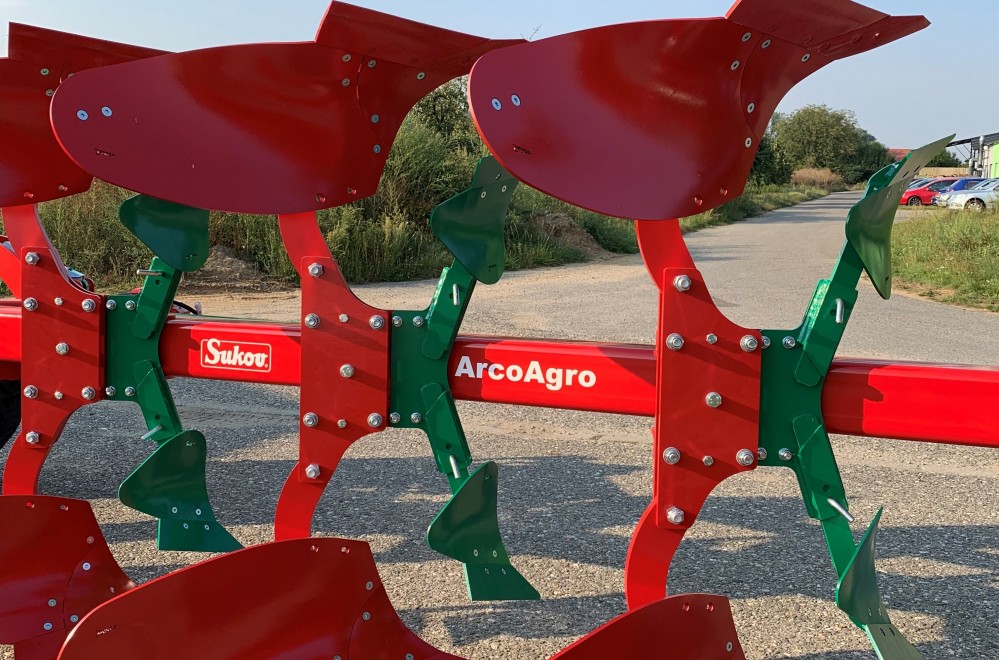

ArcoAgro 180

Machine description

The most widely used and best-selling semi-mounted ploghs suitable for aggregation for all types of tractors.

The new construction of plough ARCOAGRO 180 features with main frame dimension of 180x180x10 mm.

The sturdy construction guarantees long-term use without the need for expensive service.

Inovative features of new of range plough guarantees simple and easy use.

Standard equipment

  • Mouldboard model: KV09, LM35, LM40
  • Trashboard
  • Extension wing LM35, LM40
  • Fork hinge cat. 3
  • Connection with tractors Cat. 4
  • Protection by shear bolt
  • Hydraulic front furrow adjustment
  • Vacuum hydraulic accumulator
  • Wheel FLOTATION 500/45-22,5
  • Box + 2 spanners

Above-standard equipment

  • Mouldboard KV28
  • Slatted boards PS40
  • Skimmer type K
  • Rolling coulter Ø 480
  • Sword landsides
  • Additional plough body ArcoAgro 180
  • Extension wing KV09
  • Bushings for tractors K744
  • Lightning
Number of furrows4+1 /55+1/6+7 (6+1)8 (6+1+1)9 (7+1+1)
Weight of ploughkg29503170341336763953
Power of tractorhp145-200175- 300250 - 300200 - 400240 - 500
Performanceha/h1,2 - 2,351,7 - 2,82,1 - 3,32,1 - 3,82,4 - 4,2
Working widthcm35, 41, 47
Frame mm180x180x10 STRENX
Interbody distancemm1000
Under beam clearancemm800 - 820

Type: LM35

  • For the ploughing of light up to heavy soils.
  • Enable very good ploughing of the plant remainders.
  • Depth of ploughing- up to 35cm.
  • Depth with skimmers - up to 35cm.

Type: LM40

  • For the ploughing of light up to heavy soils.
  • Enable very good ploughing of the plant remainders.
  • LM40 is 5 cm bigger than LM35.
  • Depth of ploughing-up to 40cm.
  • Depth with skimmers - up to 36cm.

Type: PS40

  • Usable in the sandy up to heavy soils.
  • Very good ploughing of plant remainders.
  • Low resistance and excellent splitting of the soil.
  • Depth of ploughing-up to 40cm.
  • Depth with skimmers - up to 36cm.

Type: KV09

  • Spiral shape is designed for the ploughing of light and medium-heavy soils.
  • Not recommended for adhesive soils.
  • Depth of ploughing-up to 30cm.
  • Depth with skimmers - up to 33cm.

Type: KV09

  • Universal shape for all soil conditions
  • Creates a flat furrow profile to simplified the next soil preparation
  • In comparison with KV09, the KV28 is longer and slender.
  • Depth of ploughing-up to 30cm.
  • Depth with skimmers - up to 33cm.

Fork hinge cat. 3

Hydraulic front furrow adjustment

Skimmer type K
(is suitable for plowing of corn)

Protection by shear bolt

Rolling coulter

Sword landsides, runner foot

Transport wheel

Working width per body

Flange

Vacuum hydraulic accumulator

Extender of the furrows
